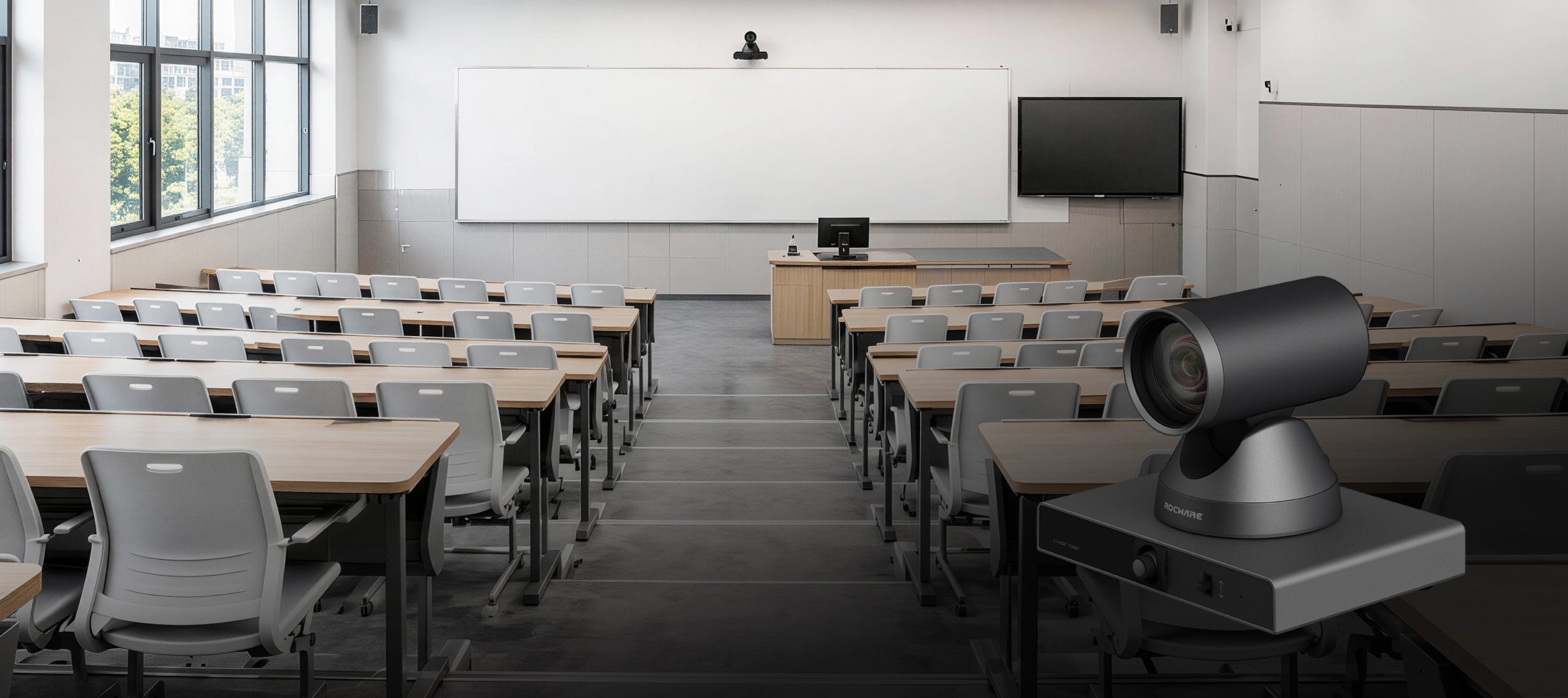

Designed for both education and meetings, RC800 combines dual 4K lenses with intelligent AI tracking and firmware-switchable Education and Conference modes. A single device adapts to different deployment needs while simplifying investment and operation.

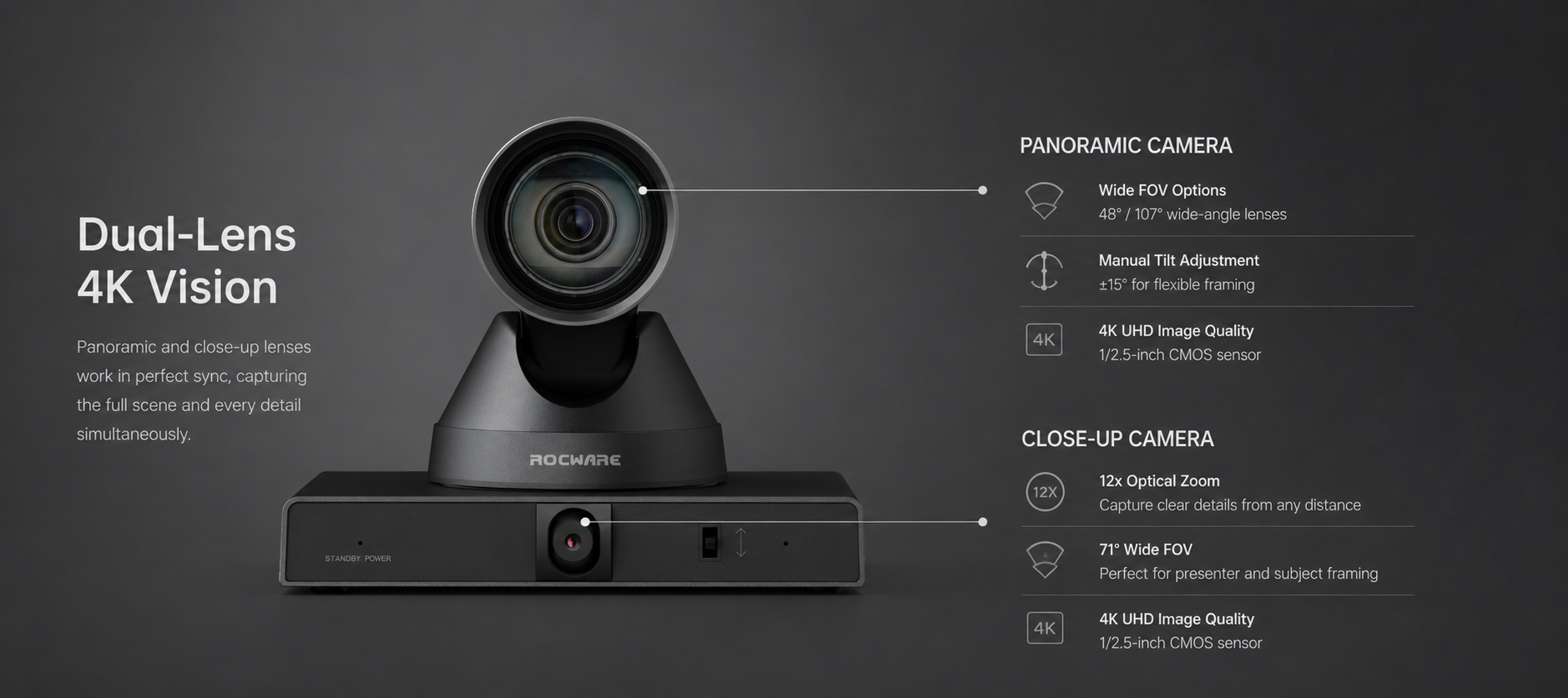

Dual-Lens Synergy
See Every Seat.
Follow Every Moment.
Dual 4K lenses work together to provide complete room coverage and detailed close-up views at the same time. The panoramic camera keeps the entire space in view, while the close-up camera captures every key moment with exceptional clarity, creating a more natural experience for learning and collaboration.
Panoramic Camera
See the Whole Room.
Close-up Camera
Focus on Every Detail.

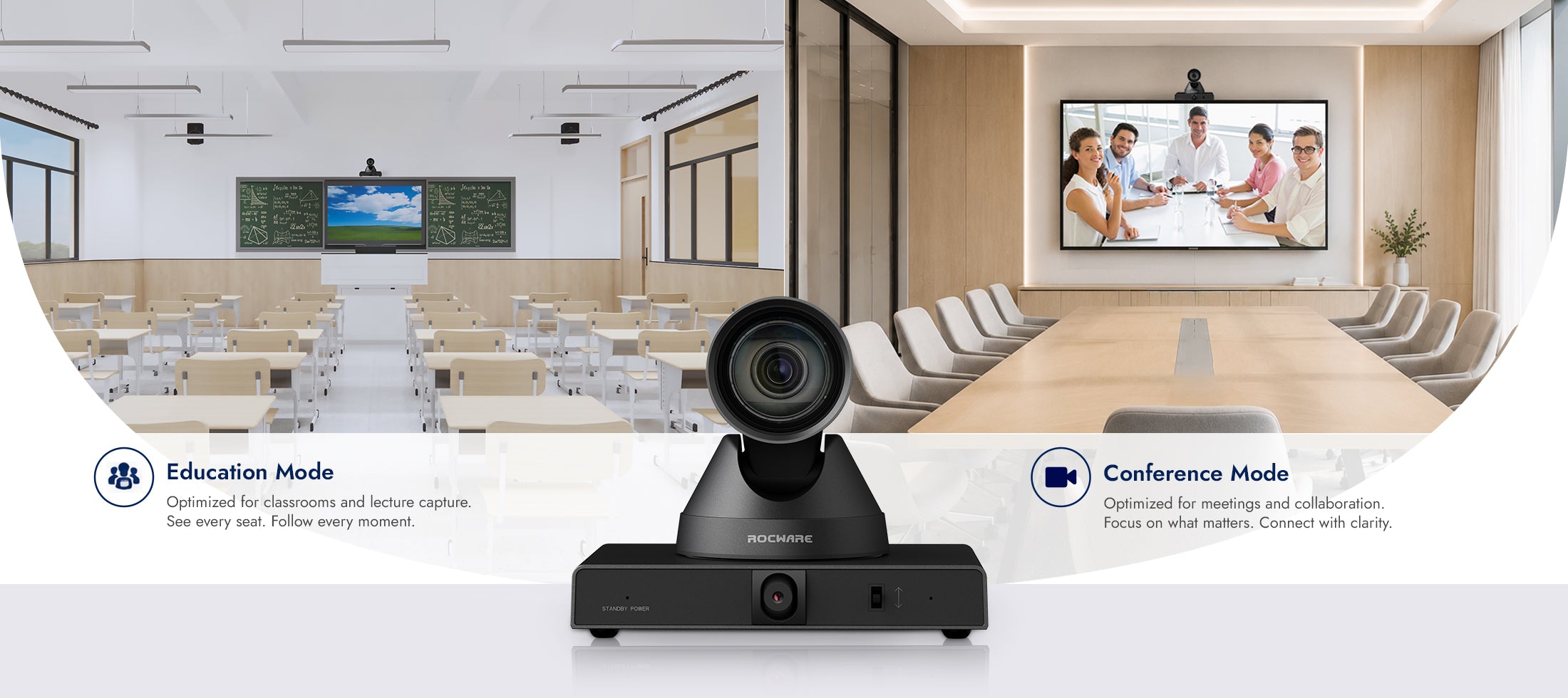

Dual-Mode Flexibility
One Camera.
Two Purpose-Built Modes.
Easily switch between Education and Conference modes through firmware to optimize camera behavior for different scenarios. A single RC800 supports both learning and collaboration, simplifying deployment while lowering equipment investment.
Optimized for Every Teaching Style and Meeting Scenario.
Education Mode
Focused on Every Lesson.
Teacher Tracking
Student Standing Tracking
Conference Mode
Designed for Natural Collaboration.
Presenter Tracking
Group Framing
Speaker Framing
Hybrid Tracking
Edu Auto-Director
Automate Lecture Production
Exclusive to Education Mode, Edu Auto-Director automatically switches between two RC800 cameras for seamless lecture capture. It eliminates the need for an external broadcast switcher, enabling unattended operation and simplifying classroom production.

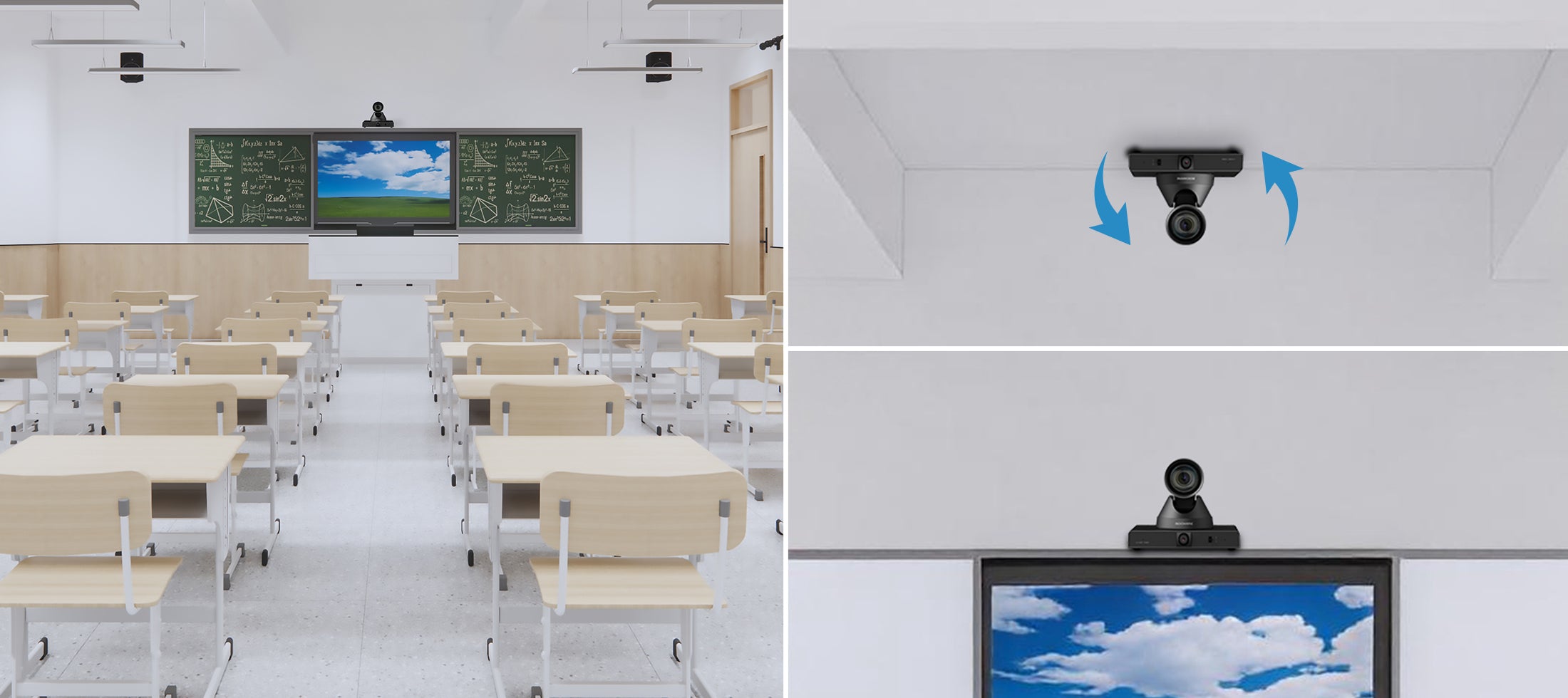

Auto Flip for Flexible Installation
Install Anywhere. Always the Right View.
An optional built-in gravity sensor automatically flips the image for upright or ceiling-mounted installations, ensuring the correct viewing orientation while simplifying deployment across different environments.

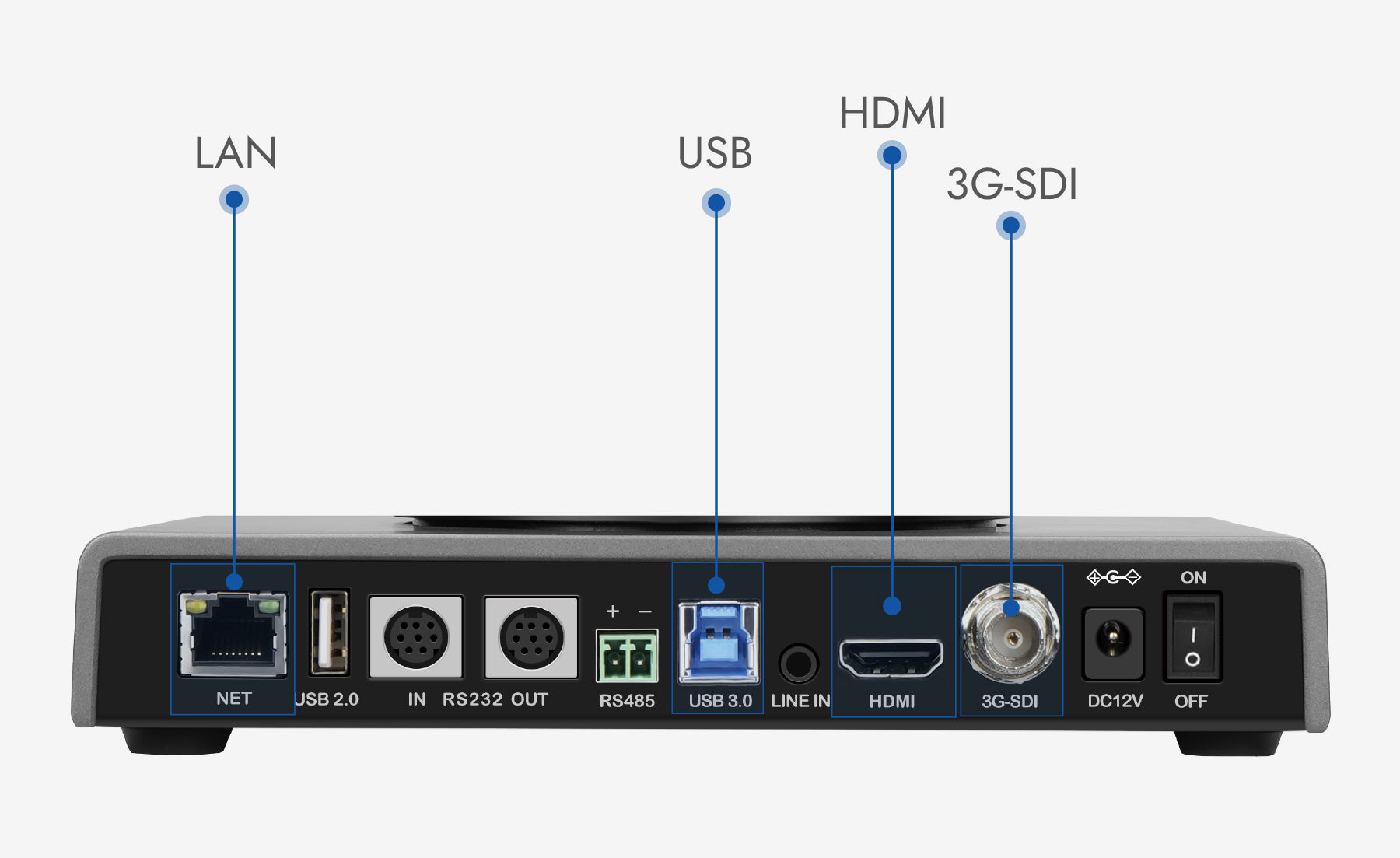

Multi-Channel Output
Connect More. Integrate Effortlessly.
Output up to four video streams simultaneously through HDMI, USB 3.0, 3G-SDI, and LAN. Easily integrate RC800 into lecture capture systems, conferencing platforms, and professional AV workflows.
Tech Specs
CLOSE-UP CAMERA SPEC
Signal Format HDMI: 4Kp30/25/29.97fps, 1080p30/25fps
SDI: 1080p30/25fps
Sensor 1/2.5-inch, CMOS, Effective Pixels: 8.51 MP
Scanning Mode Progressive
Lens 12x, f=4.4mm~52.8mm, F1.8~F2.6
Digital Zoom 16x
Minimum Illumination 0.5Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Manual, Indoor, Outdoor, One-push, VAR
Backlight Compensation Supported
Digital Noise Reduction 3D Digital Noise Reduction
SNR ≥55dB
HFOV 71° ~ 8.2°
VFOV 42.7° ~ 4.5°
PANORAMIC CAMERA SPEC
Signal Format HDMI: 4Kp30/25/29.97fps, 1080p30/25fps
SDI: 1080p30/25fps
Sensor 1/2.5-inch, CMOS, Effective Pixels: 8.51 MP
Scanning Mode Progressive
Type of Lens Mount M12
Lens I Focal length: f=8.0mm, HFOV: 48°
Lens II Focal length: f=1.97mm, HFOV: 107°
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Manual, Indoor, Outdoor, One-push, VAR
Digital Noise Reduction 3D Digital Noise Reduction
Backlight Compensation Supported
Image Flip & Freeze Supported
PTZ SPEC
Pan Angle Range ±170°
Tilt Angle Range ±30°
Pan Speed Range 1.61° ~ 75.56°/s
Tilt Speed Range 0.44° ~ 15°/s
Image Flip & Freeze Supported
Number of Presets 255
Preset Accuracy 0.1°
USB SPEC
Operating System
Windows 7 (only supports UVC1.1 features), Windows 8 and above, Mac OS X, Linux 2.4.6 and above; Android needs to include the version of UVC-related drivers
Video Codecs YUY2 / H.264 / MJPEG
Video Format
YUY2: Up to 1080p30 ;
H.264 AVC: Up to 2160p30 ;
MJPEG: Up to 2160p30 ;
USB Audio Class Supported
USB Video Class UVC 1.1
USB PTZ Control Supported
INPUT/OUTPUT INTERFACE
Video Interface
1 x HDMI: Version 2.0
1 x 3G-SDI: BNC type, 800mVp-p, 75Ω
Comply with SMPTE 424M standard
Network Interface 1 x RJ45: 10/100/1000 Mbps adaptive Ethernet
Audio Interface 1 x LINE IN: 3.5mm Jack
USB Interface 1 x USB 3.0: Type-B
1 x USB2.0: Type-A
Control Interface
1 x RS485: 2pin phoenix port, Max Distance: 1200m,
Protocol: VISCA / Pelco-D / Pelco-P
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA / Pelco-D / Pelco-P
1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA only
Power Interface 1 x DC-005/Φ2.0 type(DC IN 12V)
NETWORK SPEC
Video Codecs H.265 / H.264 / MJPEG
Video Stream Main Stream, Sub Stream, Third Stream, Fourth Stream
Main Stream, Sub Stream Resolution
3840x2160, 1920x1080, 1280x720,1024x576 etc.
Third Stream, Fourth Stream Resolution 720x480, 320x240 etc.
Video Bit Rate 32kbps~51200kbps
Bit Rate Control VBR, CBR
Frame Rate 50Hz: 1fps~25fps, 60Hz:1fps~30fps
Audio Compression AAC, G.711A
Audio Bit Rate 48kbps, 64kbps, 96kbps, 128kbps
Protocol NDI®|HX2*, SRT, TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, GB/T28181, Multicast etc.
*This feature is optional.
GENERIC SPEC
Input Voltage DC 12V/PoE+（IEEE 802.3at）
Input Current 2A（Max.）
Operating Temperature -10℃ ~ 40℃
Storage Temperature -40℃ ~ 60℃
Power Consumption 18W（Max.）
Dimensions (W x D x H) 200 x 177 x 165mm
Net Weight 1.76kg
